Specification Parameter
Basic Parameters
| Dimension | 363.2 x 287.4 x 42.1mm |
| Weight | |
| Device Color | Black |
| LCD | 14 inch 16:9, 1920×1080, 1000 nits |
| Touch Panel | Optional 10-point capacitive screen,Hardness above7H, Scratch-resistant，supports glove touch |
| Camera | Front 5.0MP |

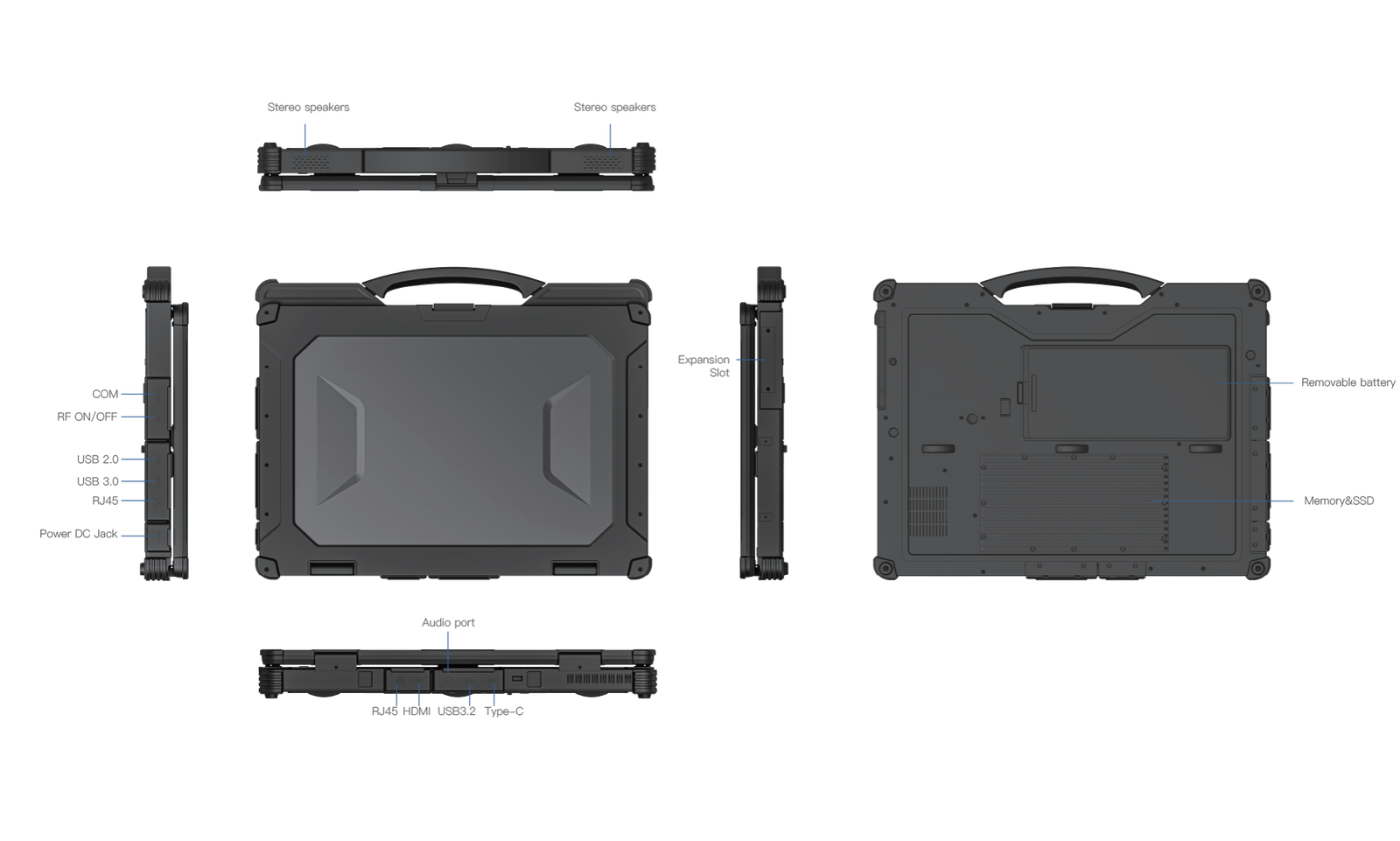

| I/O | USB3.2 *1, USB3.0 *1, USB2.0 *1 TYPE-C, Supports Thunderbolt 4 ∮3 .5mm Standard Earphone Jack *1 HDMI 2.0a mini x1 SIM card *1，TF card *1 RJ45*1 10M/100M/1000M self-adaptive， RJ45*1 10M/100M/1000M self-adaptive(USB2 .0), supports Gigabit Ethernet protocol RS232 *1, 9 fully functional lines DC19V/3 .78A ∮5 .5mm power interface *1 12PIN Pogo Pin (USB & Charging) *1 Anti-theft Lock Slot *1 Right-side Cooling Vent *1 Left-side expansion slot, optional M.2-2280 PCIe interface *1, supports SSD; Optional: M.2 E-KEY interface *1 for custom modules |
| Power | AC100~240V, 19V/3 .78A 71.82W output US Standard
Optional: EU Standard |
| Data Collection |
Fingerprint, built in, used for power-on login |
| US Layout Keyboard with Backlight | |
| Optional NFC |
Battery
| Small Battery | Built-in Polymer Lithium-ion Battery, Non-removable1300mah/11 .1V (14 .4WH)
1.5H (Default 50% volume, 200 lumens brightness, playing 1080P HD video) |
| Big Battery | Removable Li-polyment Battery, Hot-swappable4850mah/11.55V（56WH）
8H (1080P video playing with system in balanced mode,320nits screen brightness, 70db volume at 10cm, and WiFi/BT turned off) |
Performance Parameter
| CPU | Intel® Core™ Ultra 7 processor 155H
Optional: Intel® Core™ Ultra 5 processor 125H |
| OS | Windows 10/11 |
| RAM | RAM 16GB DDR5(4800MHz), optional 32GBROM |
| Storage | 256GB SSD |
Network Connections
| Wi-Fi | Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax |
| Bluetooth | BT5 .1(BLE) class 1
Transmission distance: 10m |
| 4G | 4G Optional M.2 European Standard
LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 |
| 5G | 5G Optional M.2
5G NR NSA n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/ 71/75/76/77/78/79/ SA n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/ 66/70/71/75/76/77/78/79 LTE LTE-FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 LTE-TDD B34/38/39/40/41/42/43/48 LAA B46 UMTS WCDMA B1/2/4/5/8/19 |
| GNSS | Supports single GPS or single Glonass, default GPS |
Reliability
| Operate Temperature | -20°C ~ 60°C |
| Store Temperature | -30°C ~ 70°C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified, MIL-STD-810G certified |
| Drop Height | 1.22m drop |
